Cranial Stabilization System Optimal Design and Analysis
Optimal Design and Analysis Cranial Stabilization System
At present, the occurrence of craniocerebral injury is increasing in modern society, and its mortality and disability are relatively high, which has attracted much attention. A craniocerebral surgery head frame is needed in craniocerebral surgery. Its use can provide doctors and patients with a good position for surgery, which is of great help for the smooth implementation of surgery, but in use There will also be some shortcomings and deficiencies such as head slippage and skull penetration. This article analyzes and optimizes the operation of Winever head frame, making it more simple, convenient, safe and reliable in use.

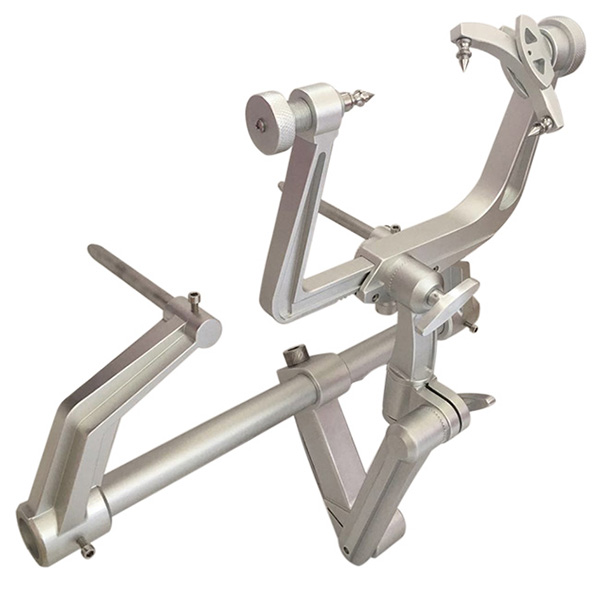

The Winever head frame is a special device used in conjunction with craniocerebral surgery. The craniocerebral fixation frame can be adjusted arbitrarily according to the needs of the operation, such as back and forth, left and right, height adjustment, etc., in order to obtain the optimal head position and posture, facilitate the operation and anesthesia management, and provide a reliable guarantee for the smooth operation effect. It is an indispensable ideal tool for neurosurgery.
Provides 3-point rigid cranial fixation.
• Flexibility and safety in positioning of skull pins around
• Quick-release lock
Product DescriptionProduct Description
Aviation grade aluminum
Cutting from aluminum plate by CNC, no casting
Compatible with DORO® & Mayfield®

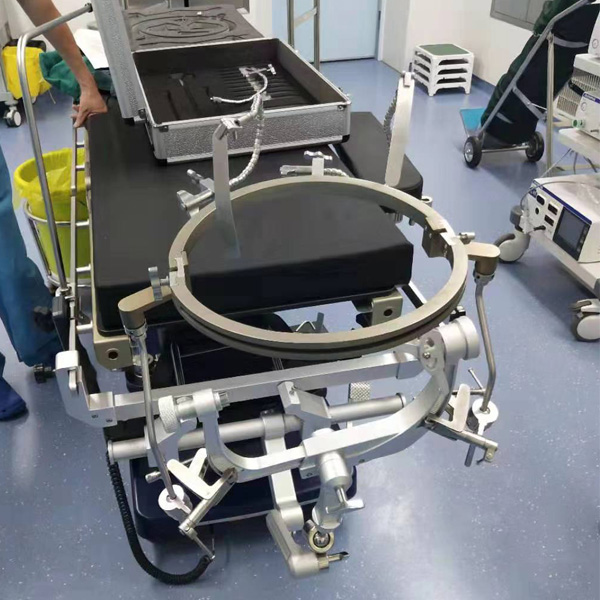

As the accessories of OT table, to fix the head, for Neurosurgery Operation
Skull clamp: ≥120mm Base unit: 70mm~550mm
N.W: 5.5kg GW: 12kg
◆360N/80lbs torque screw with calibration
◆Quick-lock rock arm
◆Quick-release base unit

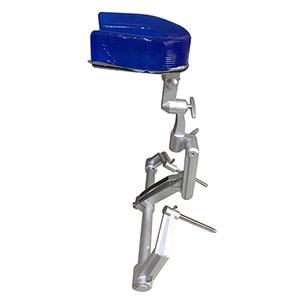

◆Gel pad headrest in standard set ( Gel pad with traction for chosen )
◆Swivel adaptor in standard set ( ball pivot adaptor for chosen )
◆3 adult pins and 3 child pins in standard set
