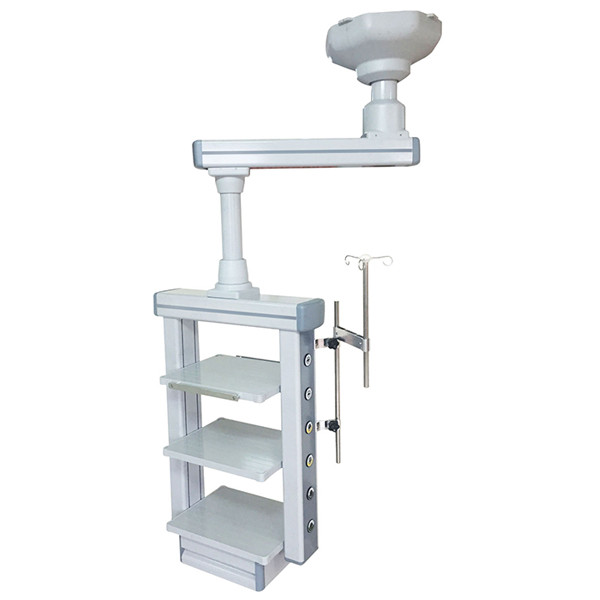

Pendant System for Endoscopy

Description

1. Working power: AC220V ，50HZ

2. Arm length: 980mm, Range of activity (radius)≥750mm(Can be customized according to user requirements)

3. Horizontal rotation angle≤340°, arm and column can rotate at the same time

4. Equipped with electromagnetic brake braking device, the device has no drift during operation, and the device can move easily when released

5. Load capacity≥250kgs

6. Steel tray 3pcs, max load capacity≥100kgs, height adjustable, rounded anti-collision design, size: 550*400*47mm

7. Hanging column, length≥950mm, There is no groove and metal leakage on the surface, gas and electricity are separated, strong electricity and weak electricity are separated. The interface can be used simultaneously.

8. Gas outlet: O₂*2, VAC*2,compressed air*1,  CO₂*1; a. Interface colors and shapes are different, with anti-misconnection function, b. More than 20,000 insertion and removal times

9. Electrical outlet: Three-hole*6, 220V, 10A

10. Equipotential ground terminal*2

11. Drawer size: 400*350*150mm

12. Rotatable infusion stand*1

13. Network Interface*1

14. Can install communication interface, video interface, etc. according to need

15. Net weight: ≥125kgs
