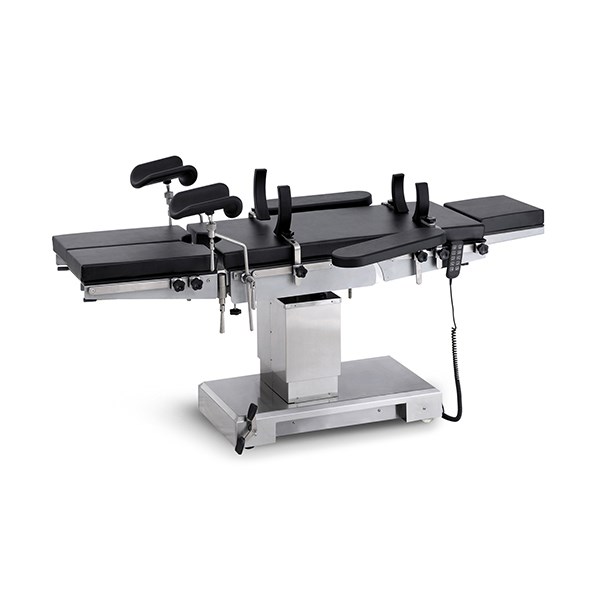

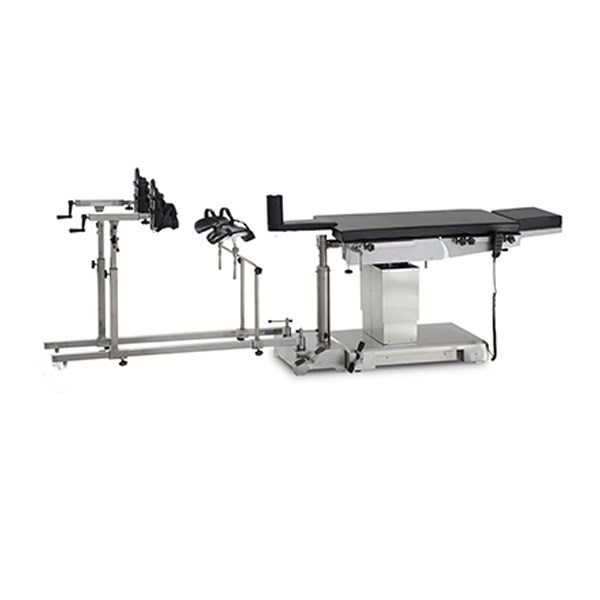

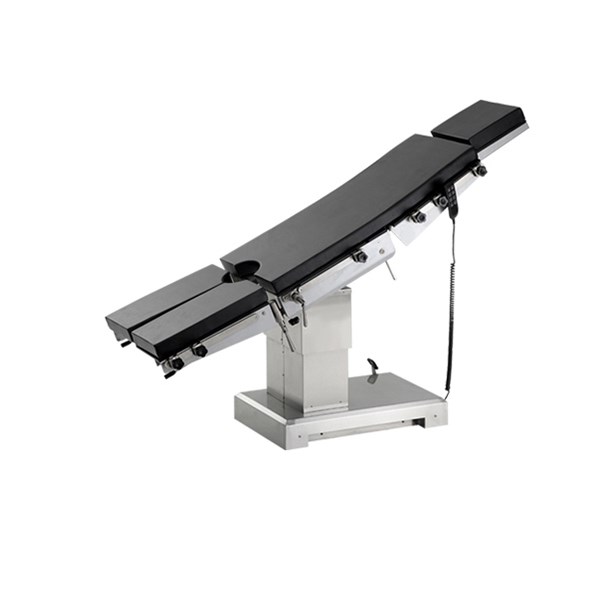

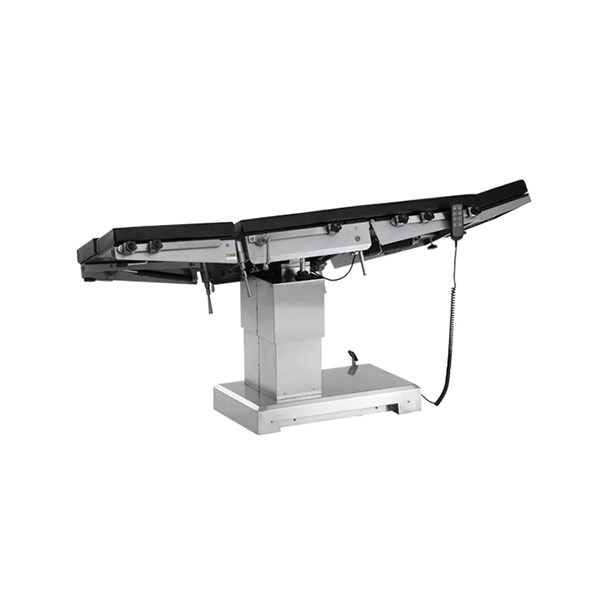

Electric Operating Table with Battery Skull Clamp and Orthopedic Extension

Product Item：HW-503B

There are two options, one has longitudinal slide function which can be used with C-arm. And one has lower height which can be used for neurosurgery.

Operating table and accessories can be customized according to requirements.

Main Specification
Model	HW-503B	HW-503B1
Length/Width	2000mm/500mm	2020mm/500mm
Height	750mm-1000mm	550mm-800mm
Trendelenburg/ Revers Trendelenburg	≥25°/≥25°	≥25°/≥20°
Lateral Tilt	≥20°/≥20°	≥20°/≥20°
Head Section Up/Down	≥45°/≥90°	≥30°/≥90°
Leg Section Up/ Down/ Outside	≥15°≥90°/≥90°	≥15°≥90°/≥90°
Back Section Up/ Down	≥70°/≥35°	≥45°/≥20°
Sliding Distance	≥350mm	——
Kidney Bridge Lift	100mm	80mm
Load Capacity	250kg	250kg
